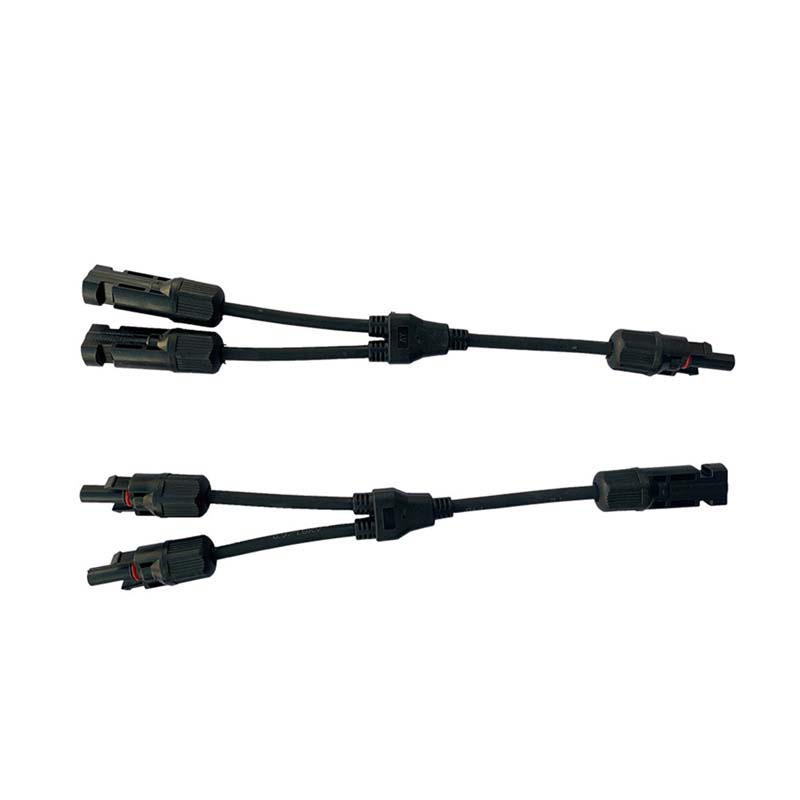

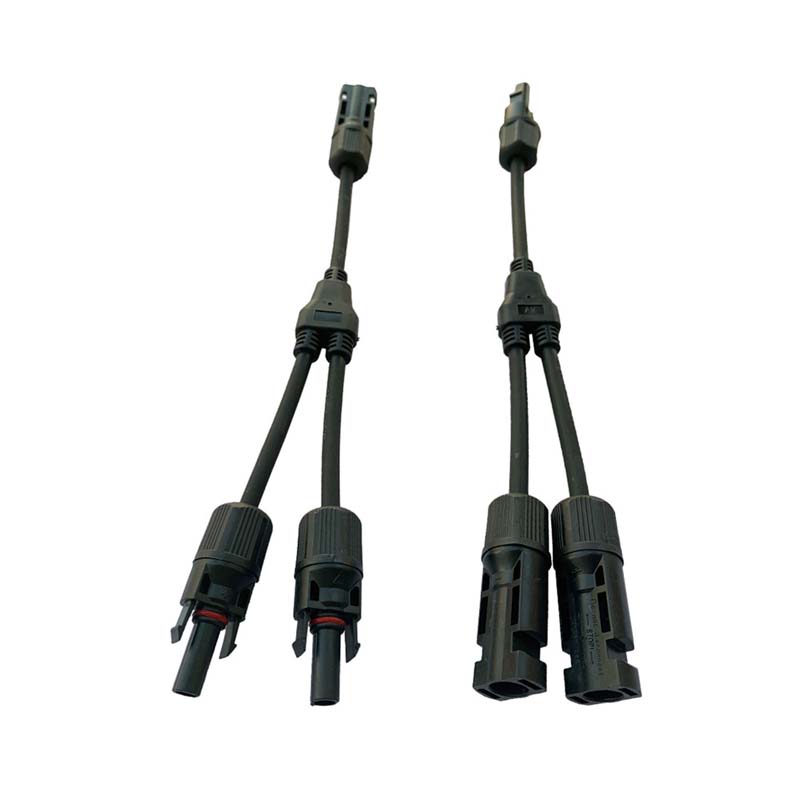

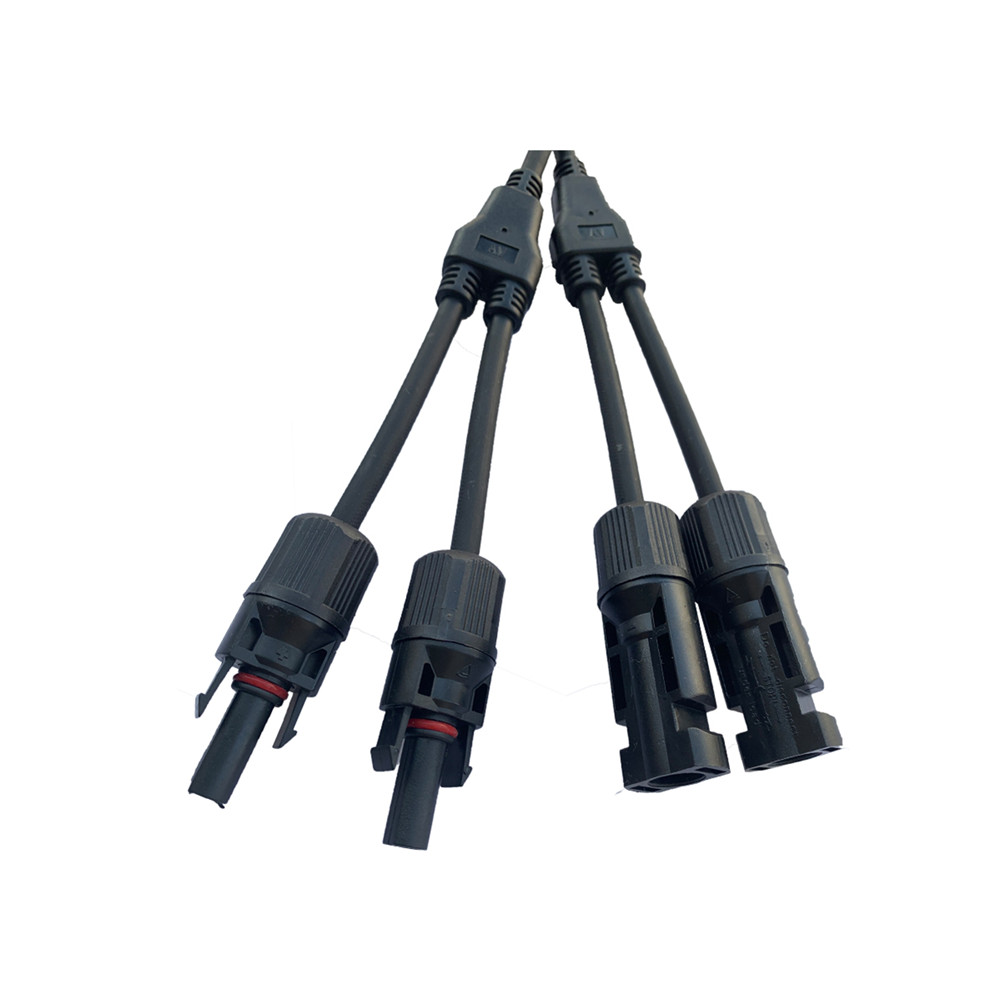

solar fotovoltaïsche connector y type 2 filiaal één tot twee combiner waterdichte mannelijke en vrouwelijke zonnepaneel kabelconnector\/
Specificatie:insulatiemateriaal : PPO
rateerde stroom: 30A
rated spanning: 1000V (TUV)
test spanning: 6KV (50Hz, lmin)
ypical Contact Weerstand: ≤5mΩ
Contact Materiaal: koper, verzilverd
Degree van bescherming: IP68
safety graad: ll
FLAME CLASS: UL94V0
-materiaal RTL: 110 ℃
ambient temperatuurbereik:40 ℃ tot85 ℃
-Main kabelspecificatie: 6mm2 (AWG10 (AWG10 )+
BRANCH KABEL SPECIFICATIE: 4MM2 (AWG12)
inSertion Force: ≤50N
withDRAWAL FORCE: ≥ 50N
